Adjusting Pickup Drive Chains-MEGATOOTH™ Pickup

    To ensure that all slack is removed from chains;

  • Close gate and engage PTO a few seconds.
  • Stop tractor engine and remove key.

1. Open right-hand side door.

MEGATOOTH is a trademark of Deere & Company

AG,OUO6059,256 -19-17JUL00-1/3

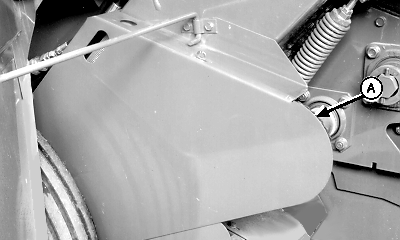

2. Remove shield (A).


A-Shield

E48770

AG,OUO6059,256 -19-17JUL00-2/3

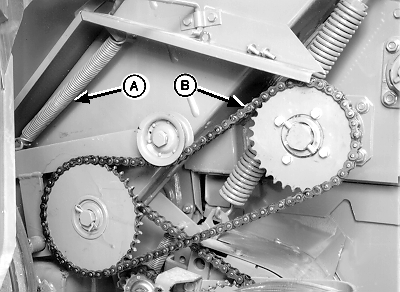

3. Measure distance between hooks on spring (A). Distance should be within specifications.

Specification

Idler Spring Hook-to-Hook -Distance 270 mm (10-5/8 in.)

4. If distance is less than specified, remove one link from drive chain (B).

5. Install shield and close side door.


A-Idler Spring
B-Drive Chain

E40499
