Wheel Spindle Positions-MegaWide Pickup

Normal position (A) is recommended for most baling conditions.

• Recommended for push bar.
• Pickup teeth may touch the ground with pickup completely lowered depending on tractor drawbar height.

Raised position (B) is recommended for straw crops with tall stubble and soft ground conditions.

• Recommended for push bar.
• Pickup teeth will not touch the ground with pickup completely lowered.

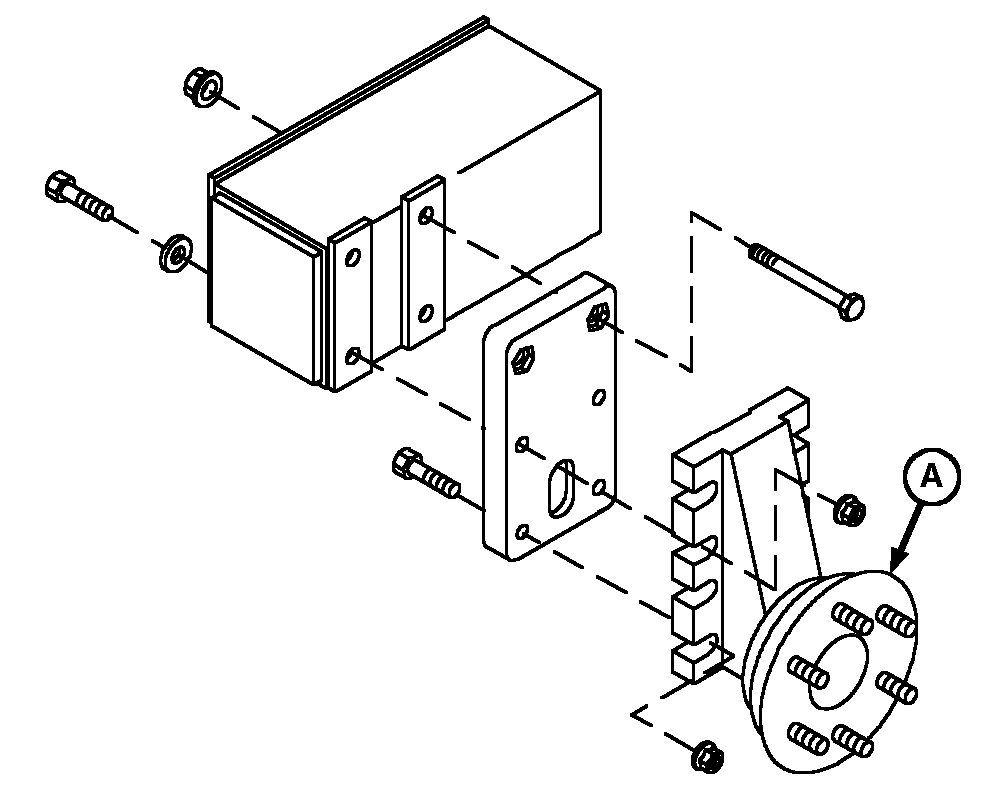

A-Normal Position

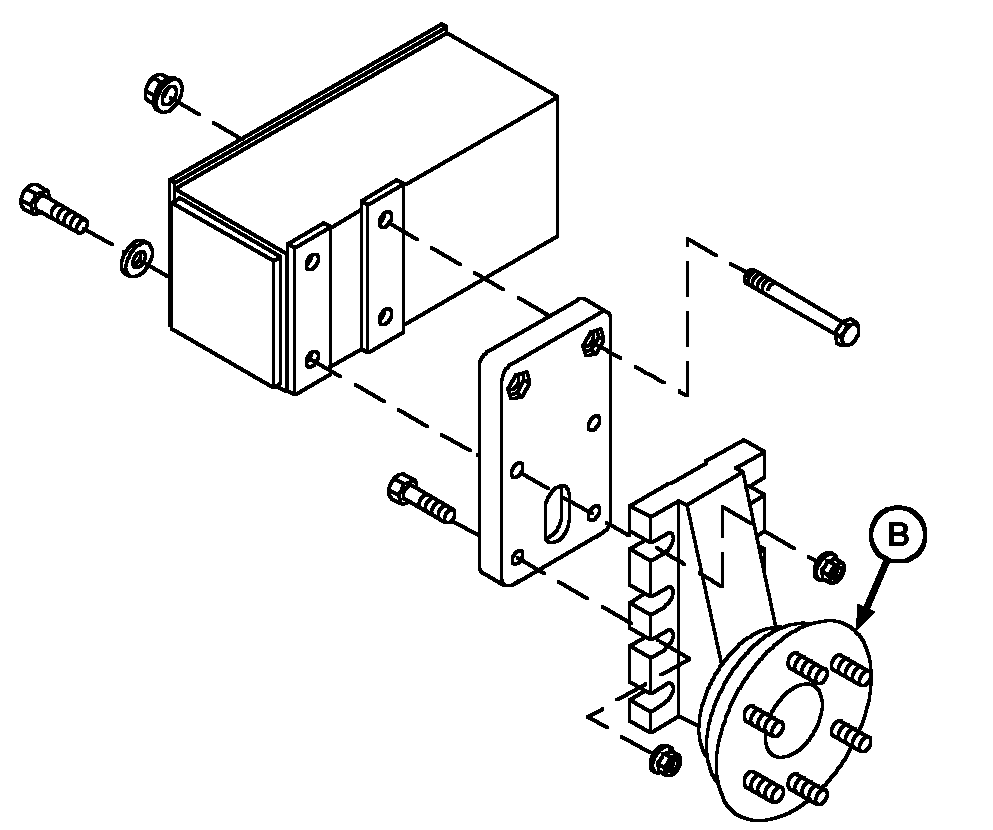

B-Raised Position

AG,OUO6059,25 -19-05MAY00-1/1
