Every 30 Hours

AG,OUO6059,49 -19-05MAY00-1/6

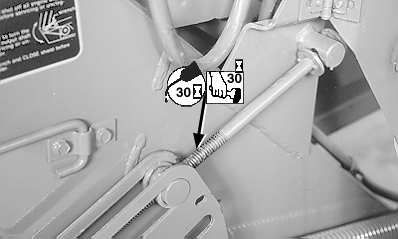

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.

A-Pickup Crank Thread

AG,OUO6059,49 -19-05MAY00-2/6

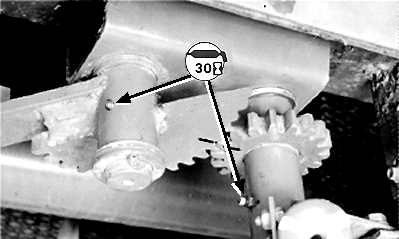

CAUTION: Twine arms can move unexpectedly when twine arm power is on. Stay out of the path of twine arms at all times when twine arm power is on. During service or adjustment procedures for twine arms or twine cutter mechanism, turn off power to twine arms BEFORE placing your hands in the path of twine arm travel.

If there is crop material which is holding twine arms from moving freely during twine arm cycle, it is recommended that twine arms be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arms. This will help to make the unplugging operation easier and prevent twine arms from moving unexpectedly while your hands may be in the path of the twine arms. Stay out of the path of twine arms at all times when power to twine arms is ON.

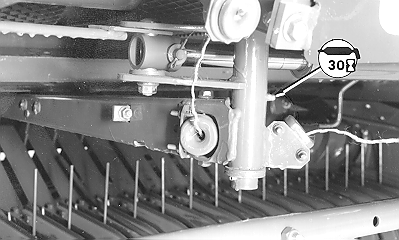

If equipped with a MEGATOOTH ™ pickup; Rotate curtains out of the way to access lubrication fittings and actuator rod.

Clean off foreign material/crop buildup from actuator rod.

MEGATOOTH is a trademark of Deere & Company

AG,OUO6059,49 -19-05MAY00-3/6

NOTE: Shield removed for photographic purpose.

AG,OUO6059,49 -19-05MAY00-4/6

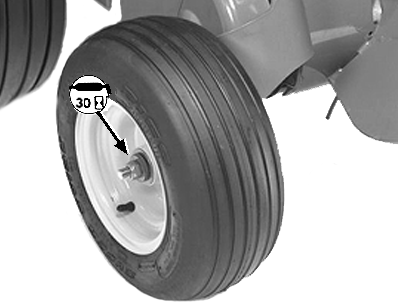

Lubricate both left and right-hand wheels.

AG,OUO6059,49 -19-05MAY00-5/6

IMPORTANT: Do not over lubricate counterknife arm pivot lubrication fittings. This will result in grease getting onto the rubber roll, causing wrappage.

Lubrication fittings are located on both left and right-hand sides.

AG,OUO6059,49 -19-05MAY00-6/6
