Installing Hitch Bracket (Quick-Coupler Hitch)-265 and 275 Only

If tractor is equipped with a Quick-Coupler hitch, bracket (A) must be installed on mower hitch frame. Quick-Coupler bracket is available through your John Deere dealer. (See Attachments section.)

1. Remove and save center link pin.

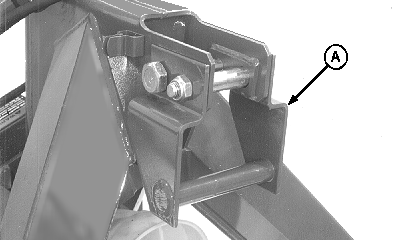

2. Install bracket (A) on mower hitch frame, as shown. Fasten with two M24 x 134 mm bolts and M18 lock nuts.

E44307


A-Bracket

AG,OUMX005,283 -19-09JUL04-1/1
