Assembling Main PTO Driveline Splined Telescoping Members (If Necessary)

1. Apply John Deere EP Moly Grease, or equivalent, around outside surface of driveline shaft (A) and around outside surface of tube (B).

2. Align driveline halves and assemble telescoping members together.

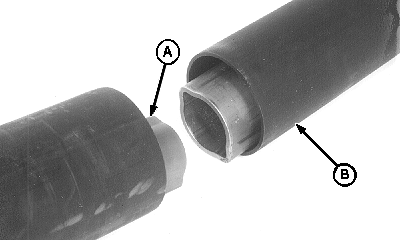

A-Shaft
B-Tube

E44329

AG,OUMX005,286 -19-08OCT98-1/1
