OME130772: 265, 275, and 285 Rotary Disk Mowers, Block File: AG_OUMX005_325_19

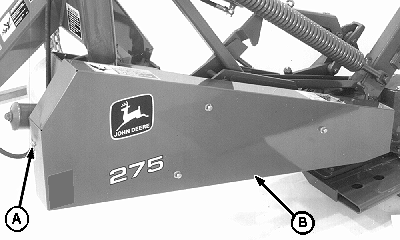

1. Remove cap screw (A), three cap nuts and washers and outer belt shield (B).

A-Cap Screw
B-Outer Belt Shield

AG,OUMX005,325 -19-12OCT98-1/2

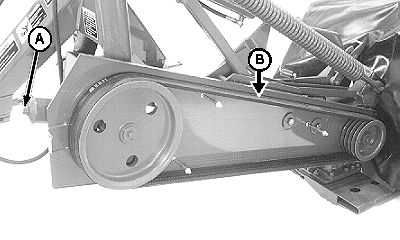

2. Check belt tension by pressing belts midway between sheaves at location (B). Belts should deflect according to specifications.

Specification

Belt Tension -Deflection

Approximately 19 mm (3/4 in.) at 89 N (20 lb force)

3. Adjust belt tension at bolt (A) as necessary, using special wrench provided. ( Special wrench is stored at hitch center link location. )

4. Return special wrench to storage location.

5. Install outer belt shield and hardware.

A-Bolt
B-Location

Special Wrench Storage Location

AG,OUMX005,325 -19-12OCT98-2/2
