Removing Knives

1. Raise pivoting cover support. (See RAISING/LOWERING PIVOTING COVER SUPPORT in Operating the Mower section.)

2. Put a block of wood between inner swath board and disk/cone.

3. Clean area around special lock nut (A).

4. Rotate disk so knife bolt is over hole (B). Remove knife bolt and nut with special wrench (provided). Remove knife.

5. Check knife, bolt, and nut before reinstalling. (See INSPECTING KNIVES, CHECKING KNIFE BOLTS, and CHECKING KNIFE NUTS in this section.)

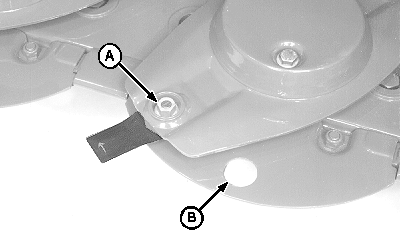

E44360


A-Special Lock Nut
B-Hole

AG,OUMX005,330 -19-12OCT98-1/1
