Removing Disks

1. Raise pivoting cover support. (See RAISING/LOWERING PIVOTING COVER SUPPORT in Operating the Mower section.)

2. Put a block of wood between inner swath board and disk/cone.

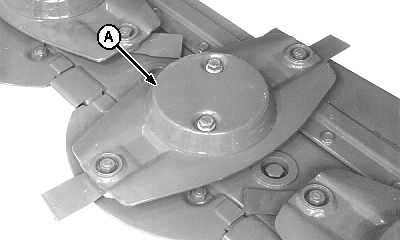

3. Remove two locking cap screws, special washers and cover (A).


A-Cover

E44362

AG,OUMX005,336 -19-12OCT98-1/2

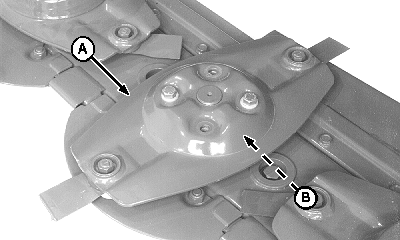

4. Remove two locking cap screws, special washers and disk (A).

5. Remove spacer (B), if necessary.


A-Disk
B-Spacer

E44363

AG,OUMX005,336 -19-12OCT98-2/2
