Removing Converging Disk/Cone

1. Raise pivoting cover support. (See RAISING/LOWERING PIVOTING COVER SUPPORT in Operating the Mower section.)

2. Put a block of wood between disks.

3. Remove four cap screws and cap (A).

4. Remove four locking cap screws, special washers and disk/cone (B).

5. Remove spacer, if necessary.

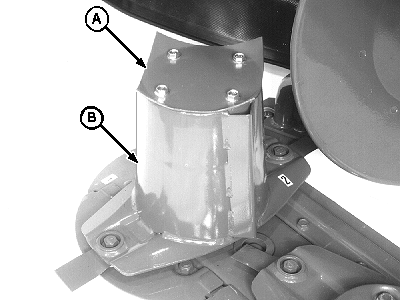

A-Cap
B-Disk/Cone

E44364

End Converging Disk/Cone Shown

AG,OUMX005,337 -19-12OCT98-1/1
