Assembling Main PTO Driveline Telescoping Members (If Necessary)

1. Apply multipurpose grease around outside surface of inner driveline tube (A).

2. Align driveline halves and assemble telescoping members together.

3. Apply multipurpose grease, or equivalent, to all lubrication fittings before operating. (See Lubrication and Maintenance section.)

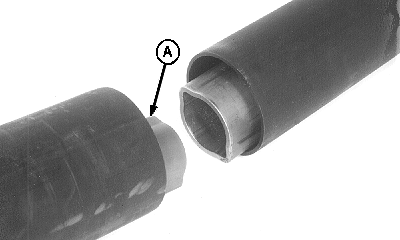

A-Inner Driveline Tube

W05301

OUO6038,0001960 -19-19MAY03-1/1
