Tractor Convenience Outlet

John Deere 55 Series, 5000/5010, 6000, 7000/7010, or 8000 models

Standard convenience outlet (A) provides power for bale size alarm.


A-Convenience Outlet

RW22076

John Deere 7000 Series Tractor Shown

OUO6077,0001922 -19-08DEC04-1/2

Other tractor models without a convenience power outlet

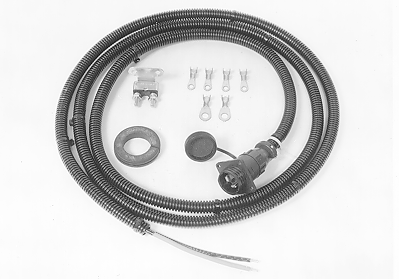

Order convenience outlet kit AE50549 from your John Deere dealer. Only this kit should be used to provide a convenience outlet due to its wire size, lack of splices, and the circuit breaker included in kit. When installing kit, attach the power and ground wires directly to the battery terminal clamp bolts, only.

E39605

OUO6077,0001922 -19-08DEC04-2/2
