Routing Twine

NOTE: Detailed threading diagrams are located on inside of twine compartment door and right-hand side of tongue.

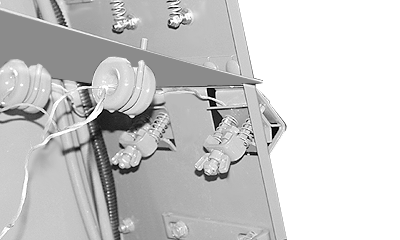

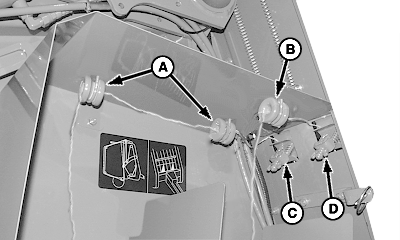

1. Pull twine from rear-most twine ball through guides (A).

2. Pull twine from front-most twine ball through guide (B).

3. Insert twine between tension plates (C and D) and pull out through front side.


A-Rear Twine Guides
B-Front Twine Guide
C-Tension Plate
D-Tension Plate

E53967
E54029

OUO6077,0001925 -19-05JAN05-1/6

4. Plastic Twine or Small Sisal Twine: Wrap twine a FULL turn around twine moving indicator (A and B), as shown. Check that indicator is free to spin.

NOTE: Wrapping large sisal twine a full turn around the indicator may cause the twine to cling to itself and break or cause excessive twine tension.

Large Sisal Twine: Route twine around indicators (A and B) as shown, without making a full turn.

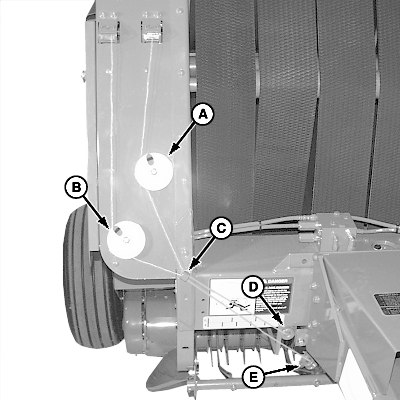

5. Route twine from indicator (A) through guides (C and D).

6. Route twine from indicator (B) through guides (C and E).


A-Indicator (Rear Arm)
B-Indicator (Front Arm)
C-Guide
D-Guide
E-Guide

E53968

OUO6077,0001925 -19-05JAN05-2/6

causym CAUTION: Twine arms can move unexpectedly when twine arm power is on. Stay out of the path of twine arms at all times when twine arm power is on. During service or adjustment procedures for twine arms or twine cutter mechanism, turn off power to twine arms BEFORE placing your hands in the path of twine arm travel.

If there is crop material which is holding twine arms from moving freely during twine arm cycle, it is recommended that twine arms be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arms. This will help to make the unplugging operation easier and prevent twine arms from moving unexpectedly while your hands may be in the path of the twine arms. Stay out of the path of twine arms at all times when power to twine arms is ON.

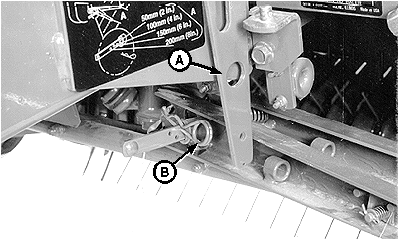

7. Remove spring pin (B).

8. Lift twine arm stop (A) and move front twine arm away from rear twine arm.

E47598
E40126


A-Twine Arm Stop
B-Spring Pin

OUO6077,0001925 -19-05JAN05-3/6

NOTE: Front twine arm is removed for illustration purpose.

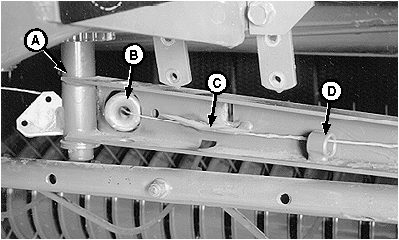

9. Route twine behind arm pivot (A), through guide (B), under "tab" (C) and through guide (D).


A-Arm Pivot
B-Guide
C-Tab
D-Guide

E40127

OUO6077,0001925 -19-05JAN05-4/6

NOTE: Remove any crop buildup from tension plates before threading twine.

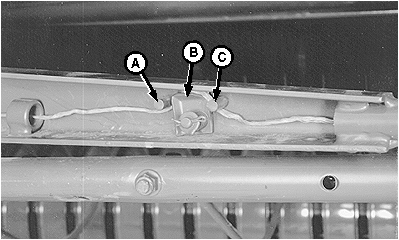

10. Route twine under guide pin (A), over top of tension plate (B) and under guide pin (C). Pull on twine to get twine between plates.


A-Guide Pin
B-Tension Plate
C-Guide Pin

E40128

OUO6077,0001925 -19-05JAN05-5/6

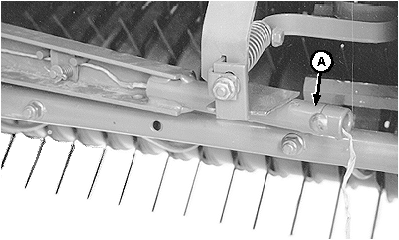

11. Pull twine through twine tube (A). Pull on twine to remove slack between guides. Twine pull should be within specifications with twine perpendicular to the twine arm. To adjust twine tension, refer to ADJUSTING TWINE TENSION in Operating the Baler section.

Specification

Twine Tension -Pull (Force) 22-45 N (5-10 lb force)

12. Cut twine 305-381 mm (12-15 in.) beyond end of twine tube (A).

13. Lift twine arm stop and move front twine arm toward rear twine arm. Install spring pin, removed in Step 7, in one of the four positions for desired twine spacing. (See ADJUSTING TWINE SPACING in this section.)

14. Repeat steps 9-12 on front twine arm.
