Installing Bale Size Alarm

1. Route bale size alarm harness (A) along tongue with hydraulic hoses and into back of tractor.

2. Plug into convenience outlet. If tractor is not equipped with convenience outlet, see your John Deere dealer.


A-Bale Size Alarm Harness

E26159

OUO6077,000192C -19-10DEC04-1/2

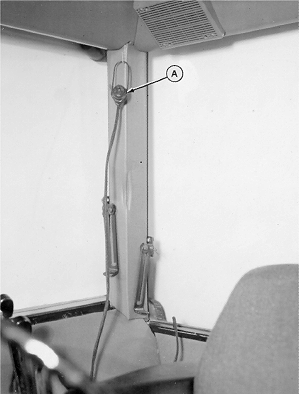

NOTE: On an excessively noisy tractor, locate alarm (A) at ear level.

3. Locate bale size alarm (A) so it is easily heard while operating the baler. Adjust shutter on alarm for desired volume. (See ADJUSTING AUDIBLE BALE SIZE ALARM VOLUME in Operating the Baler section.)


A-Bale Size Alarm

E26162

OUO6077,000192C -19-10DEC04-2/2
