Every 30 Hours

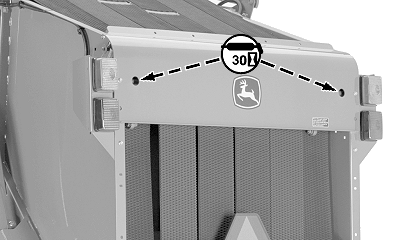

Bale Shape Sender Arms
|
|
|
|
OUO6077,0001941 -19-05JAN05-1/7
|

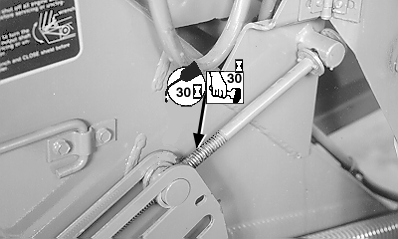

Pickup Lift Crank
Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.
|
|
|
|
OUO6077,0001941 -19-05JAN05-2/7
|

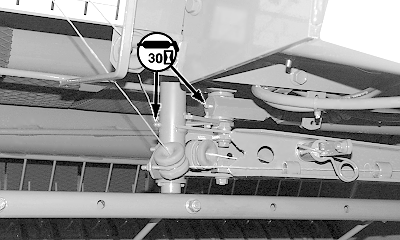

Twine Arm Hub and Hydraulic Cylinder Pivot
 CAUTION:
Twine arms can move unexpectedly when twine arm power is on. Stay out of the path of twine arms at all times when twine arm power is on. During service or adjustment procedures for twine arms or twine cutter mechanism, turn off power to twine arms BEFORE placing your hands in the path of twine arm travel.
If there is crop material which is holding twine arms from moving freely during twine arm cycle, it is recommended that twine arms be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arms. This will help to make the unplugging operation easier and prevent twine arms from moving unexpectedly while your hands may be in the path of the twine arms. Stay out of the path of twine arms at all times when power to twine arms is ON.
|
|
|
|
OUO6077,0001941 -19-05JAN05-3/7
|

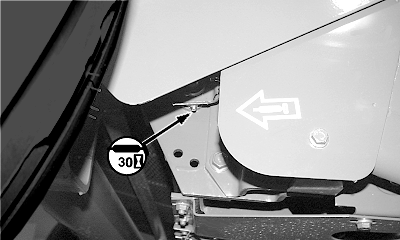

Pickup Drive Idler Pivot
NOTE:
Shield removed for photographic purpose.
|
Right-Hand Side
|
|
|
OUO6077,0001941 -19-05JAN05-4/7
|

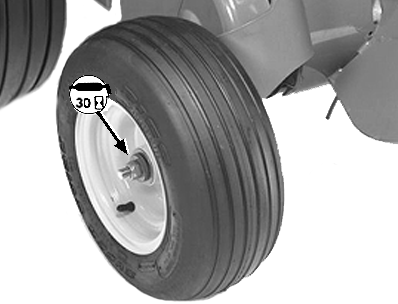

Pickup Gauge Wheels (If Equipped)
Lubricate both left and right-hand wheels.
|
Right-Hand Side Shown
|
|
|
OUO6077,0001941 -19-05JAN05-5/7
|

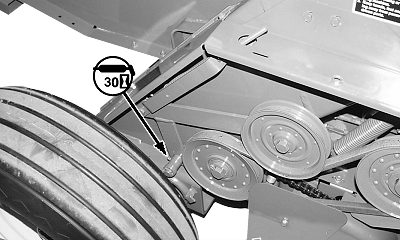

Pickup Idler Arm
|
Right-Hand Side
|
|
|
OUO6077,0001941 -19-05JAN05-6/7
|
Pickup Lift Bellcrank Pivot
|
Left-Hand Side
|
|
|
OUO6077,0001941 -19-05JAN05-7/7
|
|
