Replacing Main Drive Shear Bolt

1. Raise cover.

OUO6077,000195B -19-05JAN05-1/2

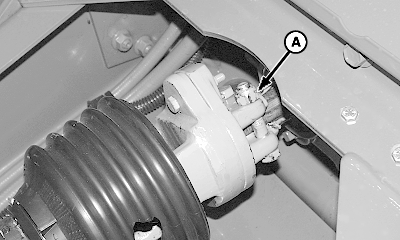

2. Install a 5/16 x 2 in. Grade 5 cap screw and lock nut (A).

IMPORTANT: Ensure shear bolt is tightened to specifications.

3. Tighten cap screw and lock nut to specifications.

Specification

Main Drive Shear Bolt -Torque 19.5 N·m (173 lb-in.)


A-Lock Nut

E54011
