Adjusting Twine Indicator Retaining Strap

NOTE: Perform adjustment on BOTH spinners.

1. Loosen cap screw (A).

2. Position retaining strap (B) in the eight O'clock position

3. Adjust dimension (C) between strap and twine indicator wheel according to specifications.

Specification

Strap-to-Twine Indicator Wheel -Distance 0.4-0.8 mm (0.016-0.031 in.)

4. Tighten cap screw (A).

5. Twine indicator wheel must spin freely after adjustment.

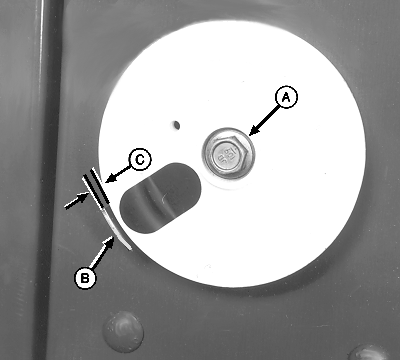

E39735


A-Cap Screw
B-Retaining Strap
C-Distance
