Adjusting Bale Shape Indicators

Bale shape senders are located at the rear of baler. Right-hand arm controls right-hand indicator. Left-hand arm controls left-hand indicator.

1. To adjust, close gate and engage PTO for a few seconds. Shut off tractor.

OUO6077,000196D -19-06JAN05-1/5

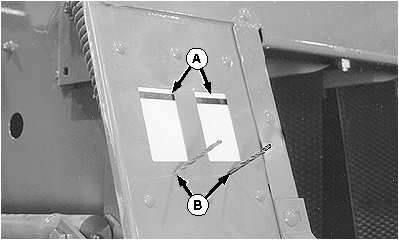

2. Raise bale shape indicators (A) until holes in shield band and holes in indicator align. Insert pins (3/16 in. drill bits) through holes (B) to keep indicators in place.


A-Bale Shape Indicators
B-Holes

E39291

OUO6077,000196D -19-06JAN05-2/5

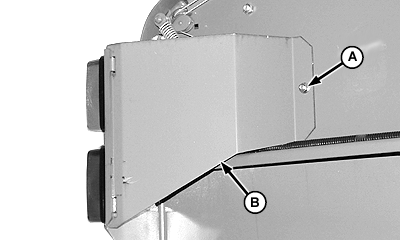

3. Remove lock nut and round-head bolt (A). Rotate shield (B) away from baler.


A-Lock Nut and Round-Head Bolt
B-Shield

E47752

Right-Hand Side Shown

OUO6077,000196D -19-06JAN05-3/5

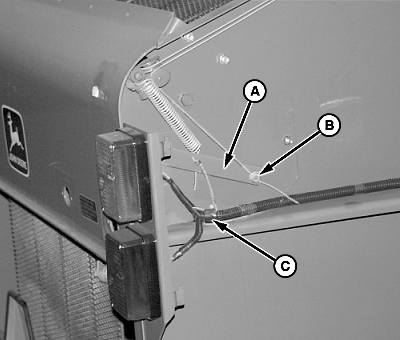

4. Loosen cable clamp nut (B).

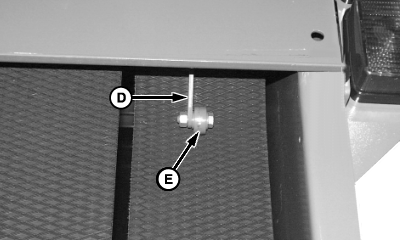

5. Pull arm (D) out so roller (E) just contacts belt without deflecting it.

6. Wrap a piece of wire around strap (A) and clamp (C) to hold arm (D) in this position.

7. Pull on cable until all slack is removed and tighten nut (B).

8. Remove wire.


A-Sender Strap
B-Clamp Nut
C-Clamp
D-Sender Arm
E-Roller

E48787

Right-Hand Side Shown

E48899

OUO6077,000196D -19-06JAN05-4/5

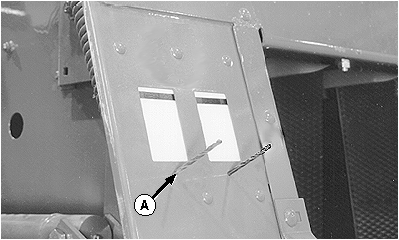

9. To check adjustment, remove pin (A) from right-hand indicator. A portion of the hole must be in alignment. If not, repeat Steps 4 through 8.

10. Repeat adjusting procedure on left-hand side.

11. Remove pins (drill bits).

12. Rotate shield toward baler and fasten with round-head bolt and lock nut.


A-Pin

E39294
