Every 30 Hours

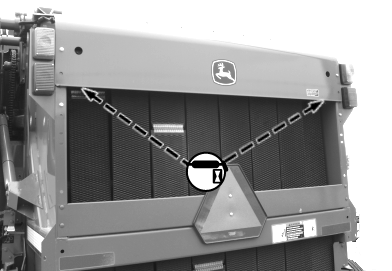

Bale Shape Sender Arms
E54548

OUO6085,000054F -19-10JUL06-1/4

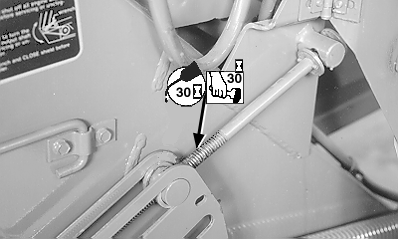

Pickup Lift Crank

Lubricate crank threads with SAE 30 or heavier oil, or with John Deere EP Moly or an equivalent SAE multipurpose grease.

E47610

OUO6085,000054F -19-10JUL06-2/4

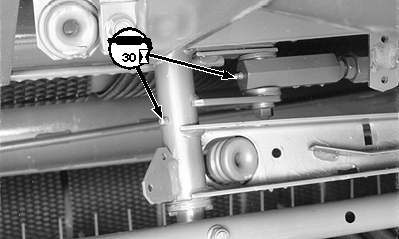

Twine Arm Hub, Hydraulic Cylinder Pivot and Twine Wrap Actuator Rod

causym CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. Turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

NOTE: Hydraulic cylinder pivot lubrication fitting is on machines equipped with hydraulic actuated twine wrap only.

Clean off material/crop buildup from actuator rod.

E47598
E39204

448 Baler

OUO6085,000054F -19-10JUL06-3/4

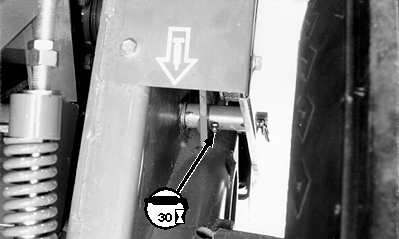

Pickup Drive Idler Pivot
E39205

OUO6085,000054F -19-10JUL06-4/4
