Belts Not Eligible for Warranty Replacement

The following illustrations are belts damaged by accumulation of crop and/or foreign objects on top of compressor rack and between belts in the starter roll area. A small slug of the buildup will pass between the lower drive roll and the belt, which forces the belt into the starter roll. The bars of the starter roll remove chunks of rubber from the belt and/or tear the belt fabric.

    AG,OUO6077,1050 -19-21JUN06-1/10

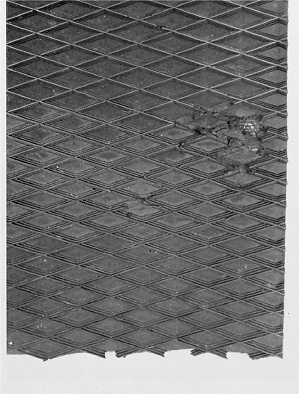

    • Chunks of rubber missing from surface of belt.
      E27608

    AG,OUO6077,1050 -19-21JUN06-2/10

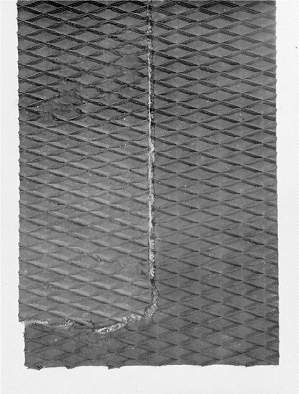

      • Belts with holes and/or tears.
      E27609

    AG,OUO6077,1050 -19-21JUN06-3/10

          NOTE: This is not ply separation.

        • Belts that are cut and/or torn in two.
      E27610

    AG,OUO6077,1050 -19-21JUN06-4/10

          • Back side of belt showing damage caused by foreign objects.
      E27611

    AG,OUO6077,1050 -19-21JUN06-5/10

            • The following illustrations show the lacing (splice) pins wearing and/or breaking, and the use of improper hooks or lacing techniques.
            • The wearing and/or breaking of pins is normal. The severity of wear or breaking of pins is related to field conditions, density of bales, belt tracking and type of crop. Pins are wear items and should be checked weekly and replaced as needed.
      E27612

    AG,OUO6077,1050 -19-21JUN06-6/10

              • Belt lacing not holding due to an insufficient amount of diamond pattern removed.
      E27613

    AG,OUO6077,1050 -19-21JUN06-7/10

                • Belt fabric cut when cutting down toward surface of the belt to remove diamond pattern.
      E27614

    AG,OUO6077,1050 -19-21JUN06-8/10

                  • Too much of diamond pattern removed for belt lacing.
      E27615

    AG,OUO6077,1050 -19-21JUN06-9/10

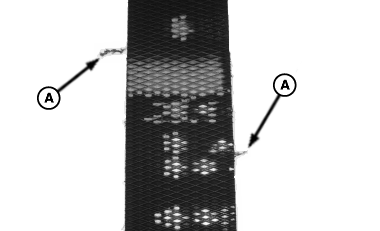

                    • Small frays (A) in belts is normal.


                    A-Frays

      E54524

    AG,OUO6077,1050 -19-21JUN06-10/10
