Install Fire Extinguisher

A 9.5 L (2-1/2 gal) pressurized-water fire extinguisher can be mounted in the holes that are provided on the baler. (See your John Deere dealer.)

OUO6077,000193E -19-28JUL06-1/3

NOTE: If bracket holes do not align with holes in baler, drill new holes in the bracket, NOT the baler.

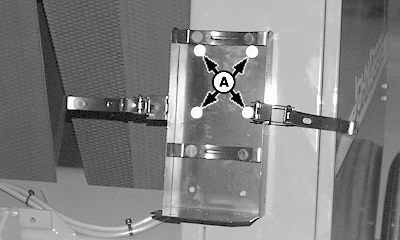

1. Install bracket on left-hand front panel. Fasten with four M8 x 25 cap screws (A), 9 x 28 x 3 mm washers, and nuts.


A-Cap Screws, M8 x 25

E54037

OUO6077,000193E -19-28JUL06-2/3

2. Fill, pressurize and test fire extinguisher. If baler is subjected to cold weather, a nonflammable antifreeze solution should be used to prevent damage to extinguisher.

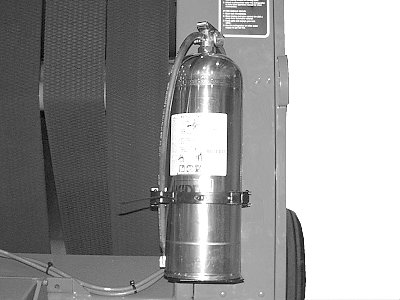

3. Fasten fire extinguisher to bracket.

E54036
