Locking the Gate

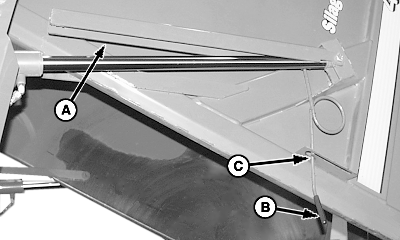

Channel (A) locks the left-hand gate lift cylinder to prevent the gate from falling if the hydraulic lift system fails. To lock gate in open position: 1. Raise gate fully.2. Move lever (B) to locked position. As the lever is lowered, channel (A) lowers around extended cylinder rod. To unlock gate: 1. Raise lever (B) and insert into notch (C) (unlocked position). As the lever is raised, channel (A) moves away from cylinder rod.2. Lower the gate. |
|
CAUTION:
While working inside or around the baler with an open gate, the gate lock lever and channel must be moved to locked position. Use this safety feature anytime the gate is open. Close the gate anytime the baler must be left unattended.
OUO6077,000194B -19-12JAN05-1/1 |
