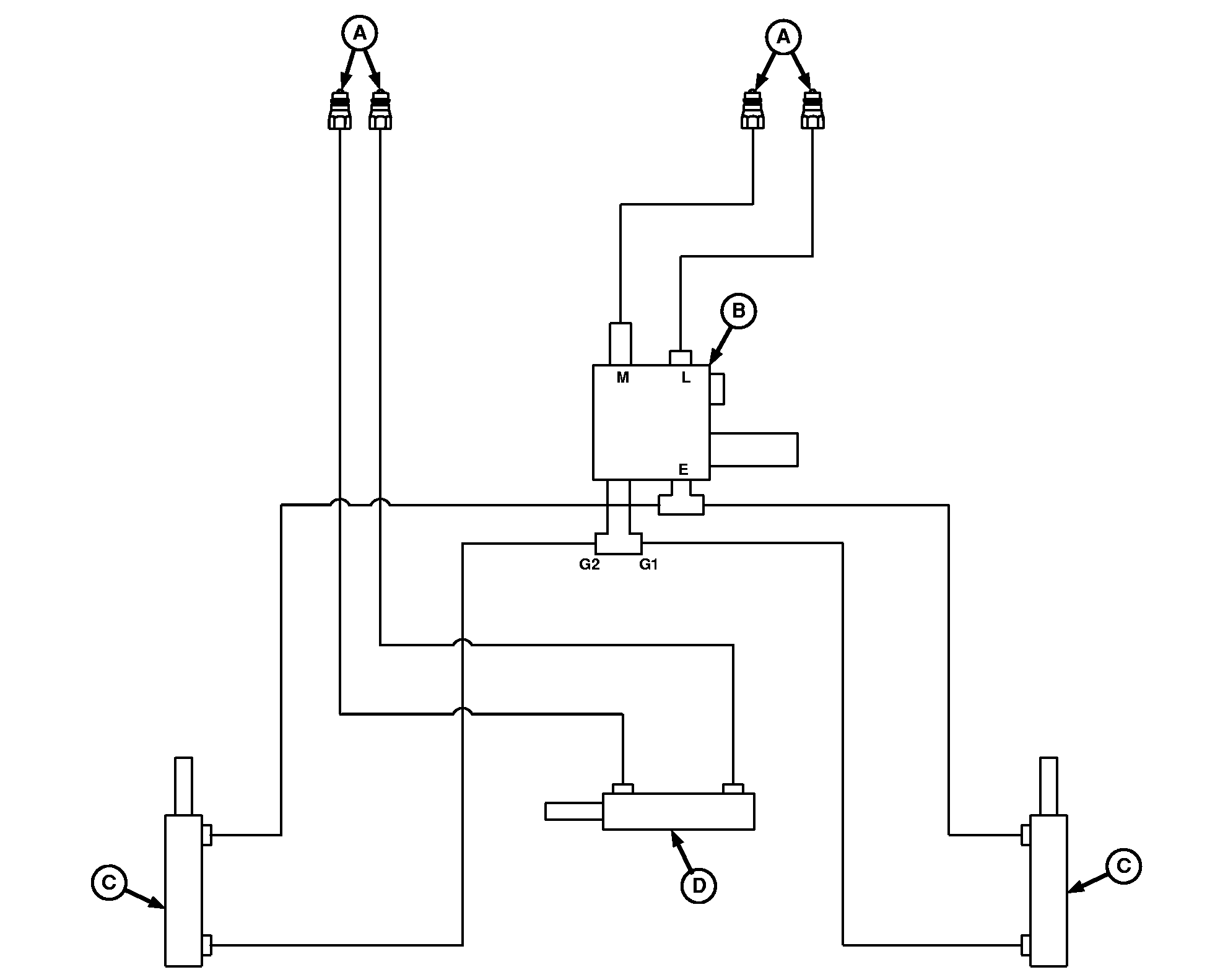

A-To Tractor SCV Ports

B-Tensioning Valve

C-Tension/Gate Cylinders

D-Twine Arm Cylinder

Hydraulic system for the balers use the following major components:

• Tensioning valve (B)-Used to direct oil flow, check flow, and limit hydraulic pressures.

• Tension/gate ( double-acting ) cylinders (C)-Used to raise and lower the gate and to control bale tensioning.
• Twine arm ( double-acting ) cylinder (D)-Used to actuate twine.
