Replacing Main Drive Shear Bolt

1. Raise cover.

2. Install a 5/16 x 2-in., Grade 5, cap screw and lock nut (A).

IMPORTANT: Ensure shear bolt is tightened to specifications.

3. Tighten cap screw and lock nut to specifications.

Specification

Main Drive Shear Bolt -Torque 19.5 N·m (173 lb-in.)

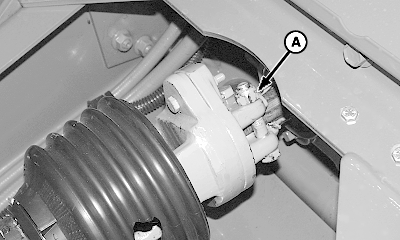

E54011


A-Lock Nut
