Adjusting Twine Cutter Tension

NOTE: Adjust twine distance from right sidesheet before performing this adjustment.

1. Adjust twine distance from right sidesheet. (See procedure in this section.)

OUO6077,000195F -19-14MAR06-1/6

causym CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

2. Adjust cutter link (A) by putting two washers in front of contact tab (B) and four washers behind contact tab.

3. Make sure twine arm stop (C) is in the down position.

4. Start tractor engine.


A-Cutter Link
B-Contact Tab
C-Twine Arm Stop

E47598

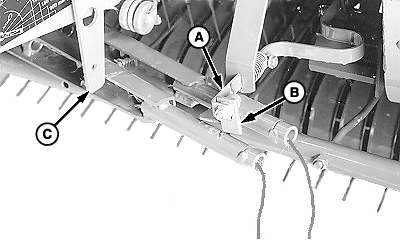

E40625

OUO6077,000195F -19-14MAR06-2/6

5. Using tractor hydraulics, move twine arms until front edge of strap (C) lightly contacts tab (B).

6. Stop tractor engine and remove key.

7. Adjust tab (B) so clearance (E) between bottom edge of tab (B) and bottom side of strap (C) is within specifications. Tighten nut (A) while holding tab (B) vertical.

Specification

Bottom Edge of Tab-to-Bottom Side of Strap -Clearance 2-4 mm (3/32-5/32 in.)

NOTE: Light contact between tab (B) and front twine arm (D) is acceptable.

8. Start tractor engine.

9. Using tractor hydraulics, move twine arm completely forward. Front twine arm must pass under tab (B). Adjust tab if necessary.

10. Using tractor hydraulics, move twine arm behind twine cutter.

11. Stop tractor engine and remove key.

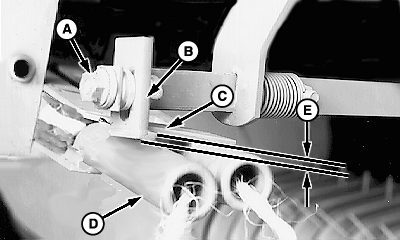

E40583


A-Nut
B-Tab
C-Strap (welded to rear twine arm)
D-Front Twine Arm (if equipped)
E-Clearance

OUO6077,000195F -19-14MAR06-3/6

causym CAUTION: Be careful when working around the knife. It is sharp.

12. Gently pull cutter link (A) forward until knife (C) contacts hex anvil. Remove slack, but DO NOT deform cutter link.

13. Mark cutter link (A) at support (B) as shown.


A-Cutter Link
B-Support
C-Knife

TS268

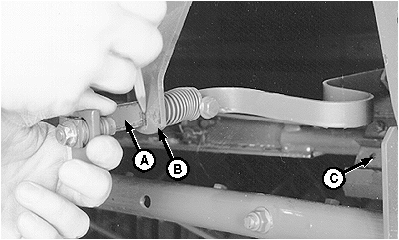

E39276

OUO6077,000195F -19-14MAR06-4/6

NOTE: Twine arm stop (A) must be in the down position.

14. Start tractor engine.

15. Using tractor hydraulics, operate twine arms through one complete cycle. Return twine arms to "home" position. Cylinder must be retracted with hex block (F) contacting cylinder end cap.

16. Stop tractor engine and remove key.

17. Check distance (C) between mark (E) on cutter link and front side of cutter link support. Distance should be within specifications.

Specification

Cutter Link-to-Front Side of Cutter Link Support -Distance 5-7 mm (3/16-9/32 in.)
Mark on Cutter Link-to-Front Side of Cutter Link Support

  • To increase distance (C), move washers (B) from front of tab (D) to rear of tab.
  • To decrease distance (C), move washers (B) from rear of tab (D) to front of tab.

18. If moving the washers cannot bring distance (C) within specification, put two washers (B) in front of tab (D) and four washers behind tab, then perform the following:

a. Loosen jam nut (G).

  • To increase distance (C), turn hex block (F) away from cylinder barrel until distance (C) is within specification.
  • To decrease distance (C), turn hex block (F) toward cylinder barrel until distance (C) is within specification.

b. Tighten jam nut.

19. Start tractor engine.

20. Operate twine arm through one complete cycle returning twine arm to "home" position.

21. Stop tractor engine and remove key.

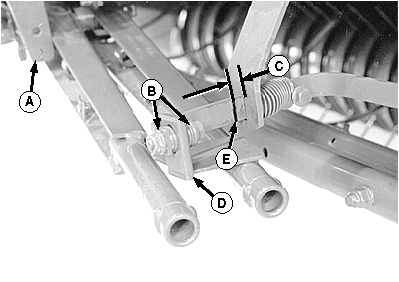

E40387

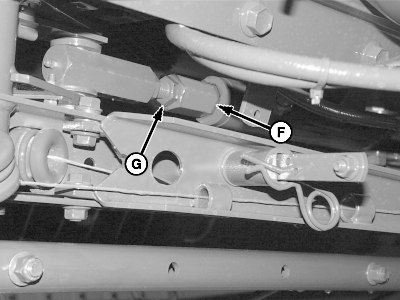

E54017


A-Twine Arm Stop
B-Washers (2 in front; 4 in back)
C-Distance
D-Contact Tab
E-Mark
F-Hex Block
G-Jam Nut

OUO6077,000195F -19-14MAR06-5/6

22. Check distance (C). Repeat steps 17 through 21 if necessary.

OUO6077,000195F -19-14MAR06-6/6
