Adjusting Twine Cutter-to-Twine Arm

causym CAUTION: Twine arms can move unexpectedly. Keep hands out of twine arm path to avoid crushing. turn off power BEFORE servicing or adjusting twine arms or twine cutter mechanism.

Stay out of the path of twine arms at all times when power to twine arms is ON.

Twine knife has two cutting edges. Be careful when working around the knife. It is sharp.

1. Remove crop material from knife and hex anvil area.

2. Start tractor engine.

E47598
TS268

OUO6077,0001963 -19-14MAR06-1/2

NOTE: Dimension (C) applies to the front arm. Rear arm must clear the bottom of the twine knife.

3. Move twine arms using tractor hydraulics until front twine arm tube (A) is centered over hex anvil (D).

4. Stop tractor engine and remove key.

5. Open left-hand door and loosen nuts (B).

6. Adjust twine cutter assembly, so clearance between knife hex anvil (D) and twine arm tube (A) is within specifications (C). Twine cutter bracket should be level (parallel with bottom edge of frame).

Specification

Knife Hex Anvil-to-Twine Arm Tube -Clearance 0.5-3.5 mm (0.020-0.138 in.)

7. Tighten nuts (B).

8. If rear twine arm contacts bottom side of knife support and minimum clearance in Step 6 is obtained, bend twine cutter bracket so hex anvil is parallel to twine arm.

9. Check knife adjustment. (See CHECKING KNIFE ADJUSTMENT in this section.)

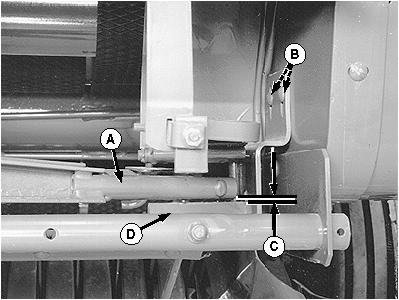

E39275


A-Front Twine Arm Tube
B-Nuts
C-Clearance
D-Hex Anvil

OUO6077,0001963 -19-14MAR06-2/2
