Adjusting Belt Tracking

IMPORTANT: Check belt tracking before making any belt tracking adjustments.

If belts are new and have not been used, add oil dry or baby powder to simulate crop dust and allow belts to track freely.

NOTE: Check tracking with tractor at lowest RPM. Hold tractor hydraulic lever in gate closing position to apply tension to belts while checking.

1. If adjustment is needed, raise tension arm fully before adjusting rolls.

Light contact with belt guides is acceptable, but belts should not curl against guide straps.

Use small movements of No. 8 roll in slot. Let baler run at least 30-40 seconds to observe tracking between adjustments.

OUO6077,000196A -19-11JAN05-1/5

2. If belts are not centered at lower belt guide (A), make the following adjustments:

  • If belts track to the left:

a. Loosen cap screw (B) at right side.

b. Raise RIGHT end of lower rear gate roll.

c. Tighten cap screw (B).

  • If belts track to the right:

a. Loosen cap screw (B) at right side.

b. Lower RIGHT end of lower rear gate roll.

c. Tighten cap screw (B).

NOTE: Light contact with belt guides is acceptable, but belts should not curl against guide straps.

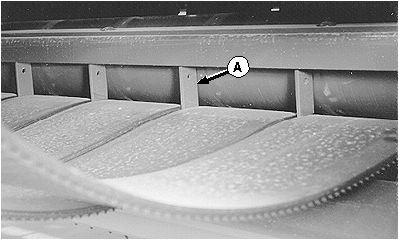

A-Lower Belt Guide
B-Cap Screw

E40115
E48783

OUO6077,000196A -19-11JAN05-2/5

3. If belts are not centered at the upper front belt guide (A), make the following adjustments:

  • If belts track to the right:

a. Open twine box door.

b. Loosen cap screw (B) at right-hand side.

c. Raise RIGHT end of front idler roll.

d. Tighten cap screw (B).

OR

a. Open left-hand door.

b. Loosen cap screw at left-hand side.

c. Lower LEFT end of front idler roll.

d. Tighten cap screw.

  • If belts track to the left:

a. Loosen cap screw (B) at left-hand side.

b. Raise LEFT end of front idler roll.

c. Tighten cap screw.

OR

a. Loosen cap screw at right-hand side.

b. Lower RIGHT end of front idler roll.

c. Tighten cap screw (B).

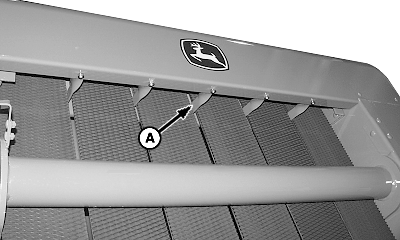

A-Front Belt Guide
B-Cap Screw

E54023

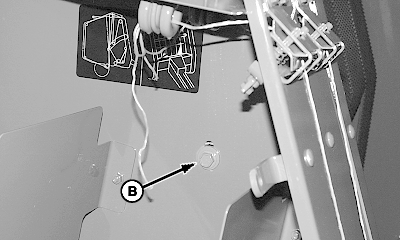

E54024

Right-Hand Side

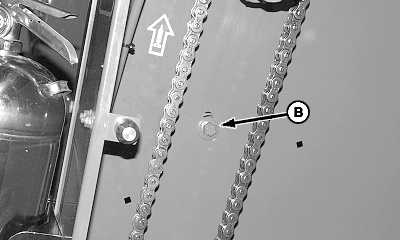

E54025

Left-Hand Side

OUO6077,000196A -19-11JAN05-3/5

4. If belts are not centered at the upper rear guide, make the following adjustment:

  • If belts track to the right, move RIGHT end of take-up roll (A) (in direction shown) in short leg of "L" shaped slot.
  • If belts track to the left, move LEFT end of take-up roll (A) (in direction shown) in short leg of "L" shaped slot.

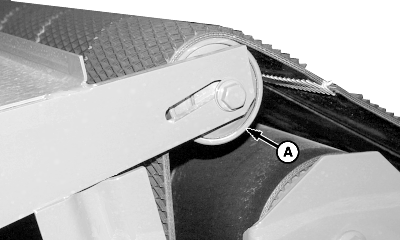

A-Take-Up Roll

E54032

OUO6077,000196A -19-11JAN05-4/5

5. If outside belts track to the outside, rubbing the lower belt guide or side of baler, adjust as follows:

  • Move roller from the normal outside position (A) on the sender arm to inside position (B). The belt will track towards the middle of the baler.

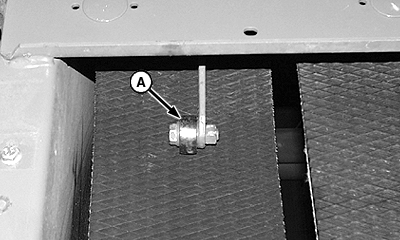

A-Roller (Normal Outside Position)

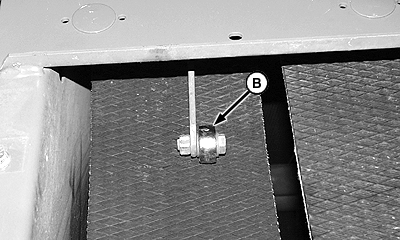

B-Roller (Inside Position)

E47618

Left-Hand Side Shown

E47619
