Attaching Hitch to Drawbar-2-Joint

1. Adjust tractor drawbar distance (B) from end of PTO shaft to hitch pin hole in drawbar to specifications.

Specification

Drawbar-to-PTO Shaft -Distance (B) 35.6 cm (14 in.)

2. Install any shields that were removed.

3. Vertically align drawbar hitch pin hole with centerline of tractor power takeoff shaft (C) to specifications.

Specification

Hitch Pin-to-PTO Shaft -Distance (A) 15.2-30.5 cm (6-12 in.)
Hitch Pin-to-Ground -Distance (D) 33-43.2 cm (13-17 in.)

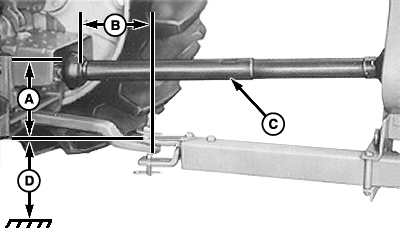

E48900


A-Distance
B-Distance
C-PTO Shaft
D-Distance
