Attaching Hydraulic Tongue Positioning Cylinder

IMPORTANT: Use a double acting 203 mm (8 in.) hydraulic cylinder with a minimum 76 mm (3 in.) bore.

2. Attach hose clamps using a 3/8 x 1 in. cap screw and lock nut (B).

3. Attach appropriate couplers on left-hand side of tractor.

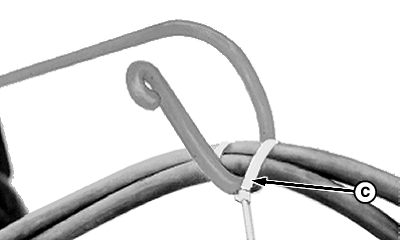

4. Put hoses in support and secure with plastic tie (C). Leave enough slack in hoses to allow for movement of baler.

IMPORTANT: Excessive hydraulic operating speed may cause damage. Use a slow (turtle) speed when changing tongue position.

Disengage PTO before attempting to position tongue hydraulically to avoid drive train damage.

5. Slowly operate hydraulic cylinder several times. Hold tractor remote hydraulic control lever in operating position for a few seconds to clear air in the hydraulic system.

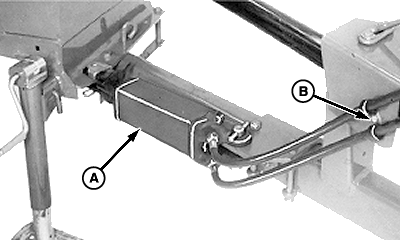

A-Cylinder
B-Cap Screw and Lock Nut
C-Plastic Tie

OUO6038,000003E -19-16JUN06-1/1
