CAUTION: Shut off tractor engine, and wait until baler has stopped. Remove crop from compressor rod area before removing compressor rods.

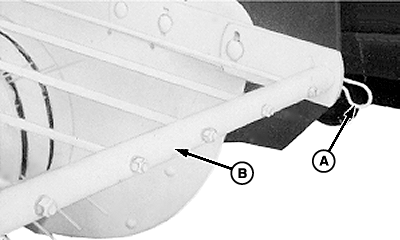

Remove spring locking pin (A) from each end of compressor rod bar (B) and remove.
A-Spring Locking Pin B-Compressor Rod Bar
OUO6038,000007B -19-27SEP00-1/1
CAUTION:
Shut off tractor engine, and wait until baler has stopped. Remove crop from compressor rod area before removing compressor rods.
