Every 10 Hours

Chains

causym CAUTION: To help prevent injury, do not lubricate chains with machine running.

Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.

Lubricate chains immediately after operation when the chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration, resulting in longer chain life.

TS284

OUO6038,000007F -19-27SEP00-1/4

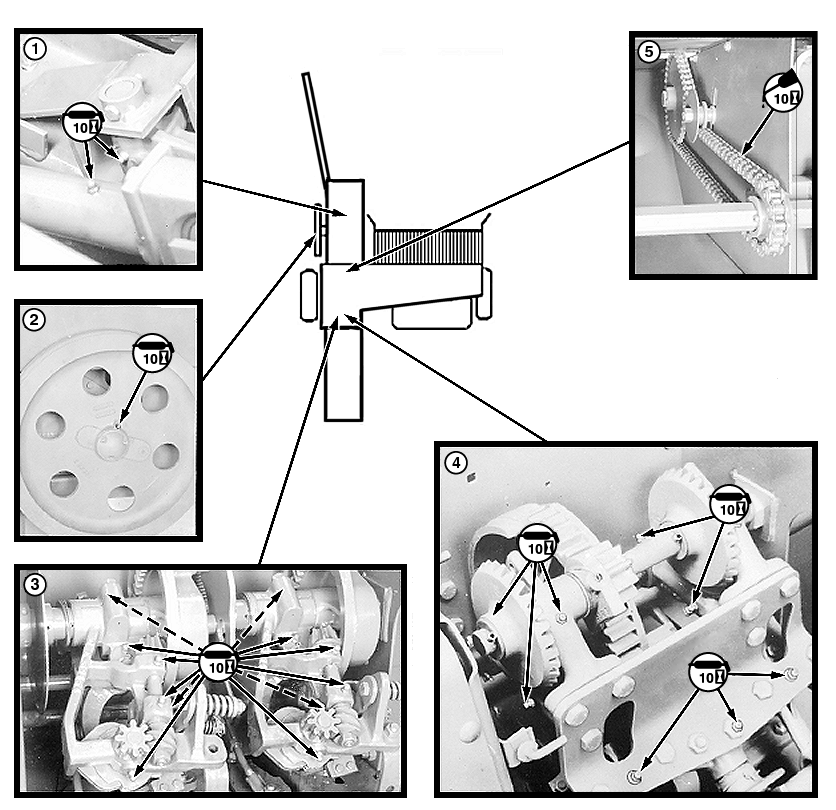

E28946


1-Plungerhead Pitman
2-Flywheel Bushing (when replacing flywheel shear bolt, lubricate at fitting)


3-Twine Knotters


4-Wire Twister (338)


5-Feeder Finger Drive Chain

IMPORTANT: Excess grease in knotter and/or twister areas cause accumulation of

chaff and dirt, resulting in undue wear and breakage.

OUO6038,000007F -19-27SEP00-2/4

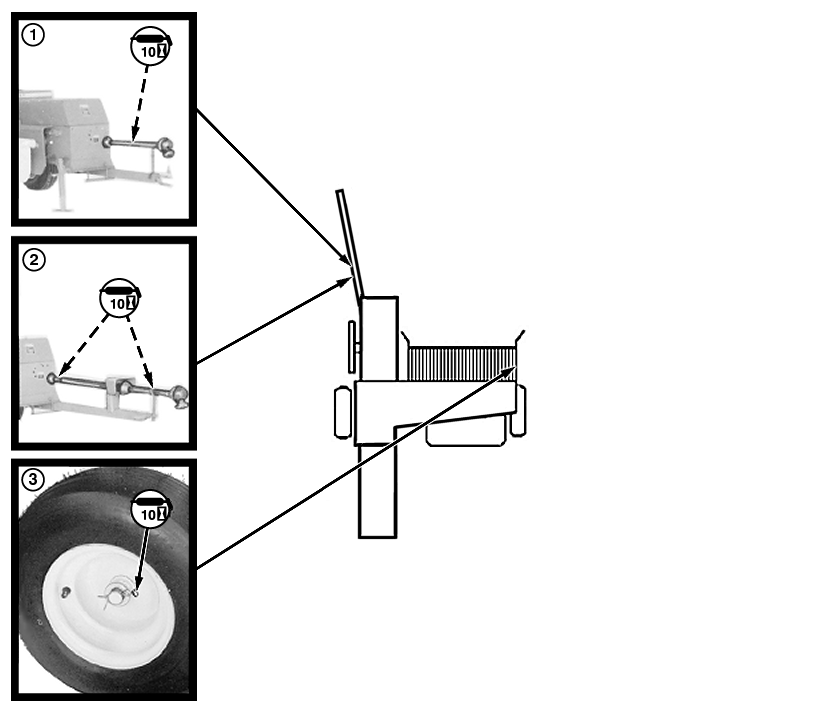

E32215


1-328 Baler (with 2-Joint Driveline)

2-328 or 338 Baler (with 3-Joint Driveline)

3-Pickup Gauge Wheel



OUO6038,000007F -19-27SEP00-3/4

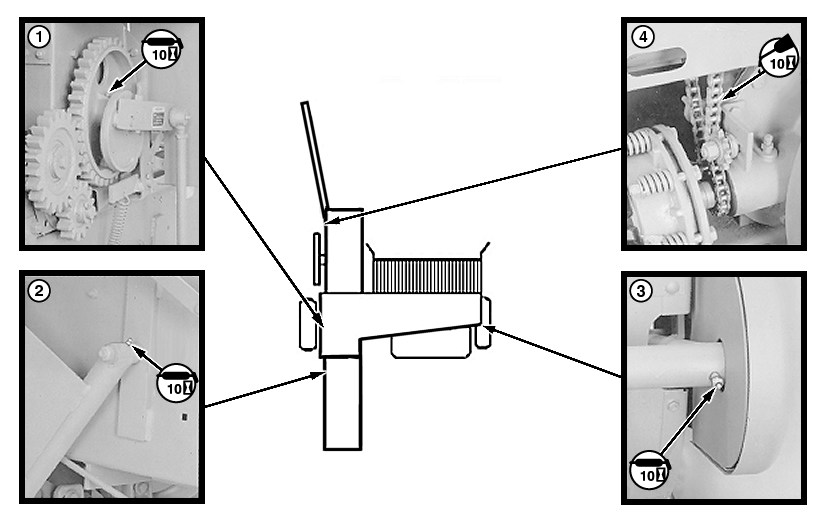

E26279


1-Clutch Ring


2-Needle Frame (Lubricate Both Sides)


3-Auger Drive


4-Main Drive Chain

OUO6038,000007F -19-27SEP00-4/4
