Adjusting Knotter Drive Brake

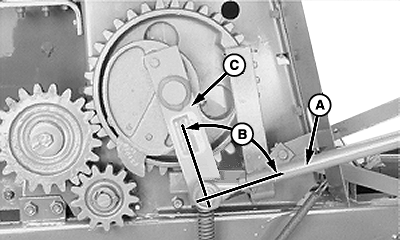

1. Disconnect lower end of lift link (A) from needle frame. Pull lift link rearward to a 90 degree angle (B) with center line of lift arm (C).

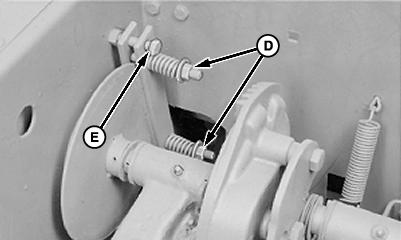

2. Loosen or tighten brake adjusting nuts (D) until 269 N (60 lb force) will move the needle lift arm.

IMPORTANT: Brake retaining bolts (E) must not contact the brake pressure plate.


A-Lift Link
B-90° Angle
C-Lift Arm
D-Brake Adjusting Nuts
E-Brake Retaining Bolts

E28957
E19304

OUO6038,000008B -19-28SEP00-1/1
