Adjusting Needle Frame and Needle Link-Twine Baler

IMPORTANT: The plungerhead, needle timing, and crank stop must be checked after making any adjustments of needle lift link.

With needles fully raised, needle frame (A) is adjusted properly when it clears main frame on the right-hand side of bale case by distance specified (B).

Specification

Needle Frame-to-Main Frame -Clearance 25-32 mm (1-1-1/4 in.)

Adjust correct needle frame clearance by loosening clamp (E) and disconnecting lift link (C) from needle frame and turning lift link (C).

IMPORTANT: After adjusting the length of lift link (C), position clamp (E) with bolt to outside. Hold ball joint (D) parallel to link bar while tightening clamp (E).

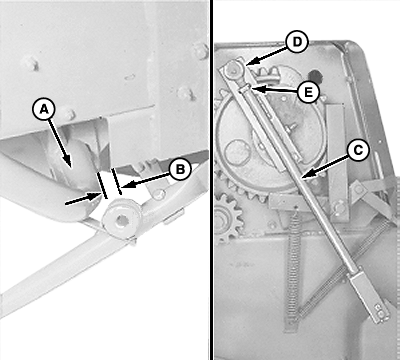

E19305


A-Needle Frame
B-Clearance
C-Lift Link
D-Ball Joint
E-Clamp

OUO6038,000008C -19-28SEP00-1/1
