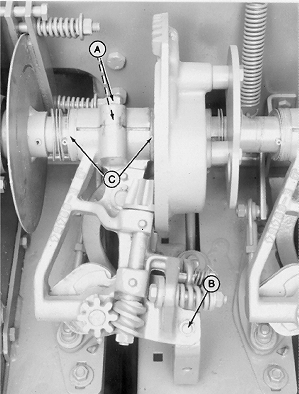

Removing Knotter Assembly

1. Remove two cap screws (A) and cap screw (B).

NOTE: Note quantity of washers (C) to ease installation.

2. Remove knotter assembly.


A-Cap Screws
B-Cap Screw
C-Washers

E29037

OUO6038,0000091 -19-28SEP00-1/1
