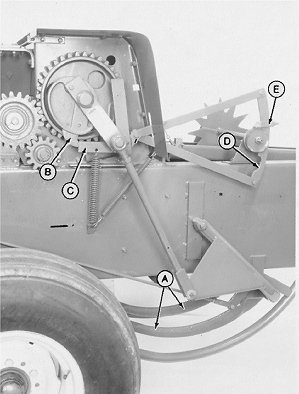

Home position is when the needles (A) are in the rearmost position; trip dog (B) contacts trip arm (C), and measuring arm (D) is against stop (E).
A-Needles B-Trip Dog C-Trip Arm D-Measuring Arm E-Stop
