Threading Right Hand Needle (338)

causym CAUTION: Disengage PTO and shut off tractor engine before threading needles.

IMPORTANT: Do not cross twine during threading operation.

NOTE: A detailed threading diagram is located underneath twine box lid. Improperly threaded twine will cause tying problems.

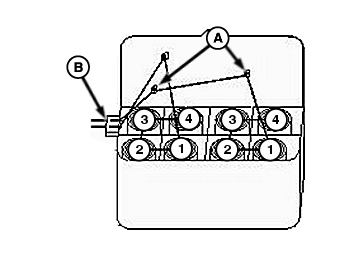

1. With needles in "home" position, thread twine from ball number one, through lower guides (A) and through FRONT of tension plate (B).

2. Connect twine from ball number one, to ball number two, then to number three, and number four.

E54882


A-Lower Twine Guides
B-Tension Plate (Front)

OUO6085,0000660 -19-27OCT06-1/3

3. Thread through eye (A) on needle frame.

4. Thread twine (D) UNDER needle guard, through eye (C), beneath right-hand needle and through right-hand needle (B). Thread twine OVER guide on end of needle.


A-Eye
B-Right-Hand Needle
C-Eye
D-Twine

E18053
E18054

OUO6085,0000660 -19-27OCT06-2/3

5. Secure twine to measuring wheel shaft (A).


A-Shaft

E18055
