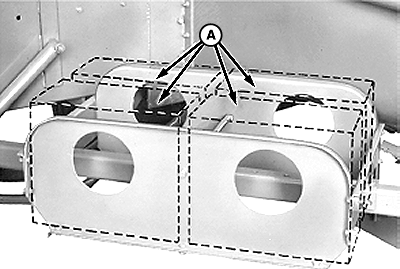

Loading Wire Box (338)1. Put six coils of 14-1/2 gauge wire (A) in wire box.2. Splice center wire of each rear coil to outside wire of its respective front coil. Make a small tight splice so wire will pull through wire guides and needles without snagging. 3. Thread baler with center wire from each front coil of wire. 4. Move rear coils forward when replacing wire. Place new coils in box and splice wires. |
|
