Adjusting Twine Tension (338)

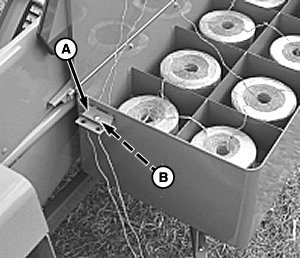

Tension is controlled by a spring-loaded tension plate (A). Adjust using twine tension adjusting nut (B).

A-Tension Plate
B-Nut

OUO6085,0000664 -19-25OCT06-1/2

NOTE: Sisal twine in springy hay may need slightly more than 45 N (10 lb) of pull.

Raise needles until twine guide rivet is even with top of twine disk. Attach a spring scale (A) to twine as shown. Twine should pull from twine box at 22 to 45 N (5 to 10 lb) pull. If tension is less, tighten the adjusting nut. If more than 45 N (10 lb) pull is measured, loosen the nut.

A-Spring Scale

OUO6085,0000664 -19-25OCT06-2/2
