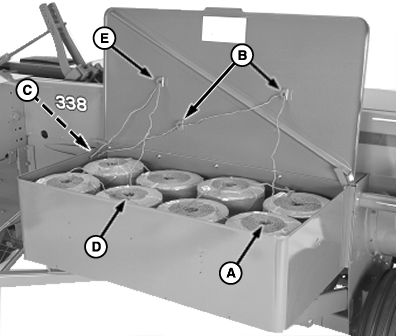

Loading Twine Box (338)1. Put eight balls of twine in twine box. Pull twine from top end of ball.IMPORTANT: Ensure twine for right-hand side goes through FRONT of tension plate (C). Twine for left-hand side goes through REAR of tension plate (C). 2. Thread twine from the center of first right-hand ball (A) and through its respective guides (B). Insert twine through FRONT of tension plate (C). 3. Thread twine from the center of first left-hand ball (D) and through its respective guide (E). Insert twine through REAR of tension plate (C). 4. Tie outside end of first ball to inside end of second ball. Use a modified square knot with sisal twine and a sheet bend knot with plastic twine. 5. Trim loose ends of twine as close to knot as possible. 6. When loading new twine, place balls in sequence shown in "Threading Right-Hand and Left-Hand Needes". |
|
OUO6085,0000665 -19-27OCT06-1/1 |
