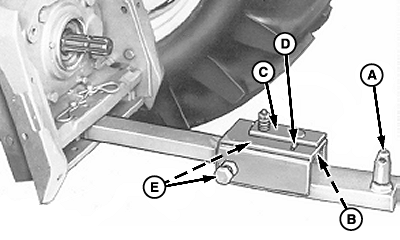

Attaching Hitch to Drawbar-3-Joint

NOTE: Shield removed for illustration.

1. Slide hitch (A) onto tractor drawbar.

2. Put shims (B) between drawbar and hitch for a tight fit. Store extra shims under strap (C).

3. Fasten using hitch pin and spring pin (D).

4. Tighten adjusting cap screw (E) on both sides of equal angle hitch. Tighten jam nuts against hitch.

5. Attach safety chain.

6. Provide only enough slack in the chain to permit turning.

A-Hitch
B-Shims (as required)
C-Strap
D-Spring Pin
E-Adjusting cap screw

OUO6078,0005279 -19-12JUN06-1/1
