Adjusting Bale Length

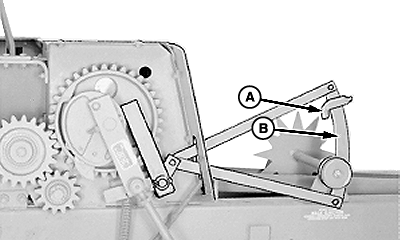

Adjust stop (A) on measuring wheel arm (B) up or down for desired bale length. Raise the stop for bales up to 50-in. (1270 mm) long; lower the stop for bales as short as 12-in. (305 mm ) long.

A-Stop
B-Arm

OUO6078,000529F -19-08JUN06-1/1
