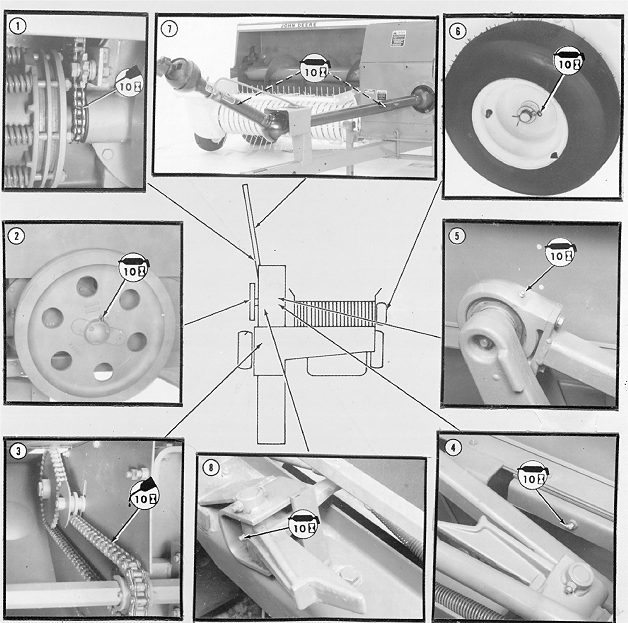

1-Main Drive Chain
2-Flywheel Bushing when flywheel shear bolt is replaced, lubricate at fitting.

3-Feeder Finger Drive Chain
4-Plungerhead Pitman

5-Plungerhead Pitman
6-Pickup Gauge Wheel

7-PTO
8-Crank Stop

IMPORTANT: Excessive grease in the knotter and twister areas causes accumulation of

chaff and dirt, resulting in undue wear and breakage.
