Adjusting Auger Drive Belt
1.

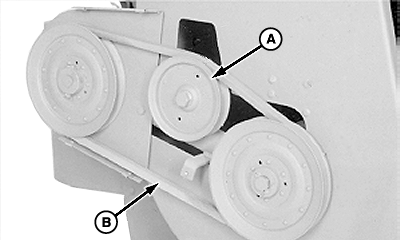

Loosen idler (A) and adjust until belt (B) deflection is within specification when specified pressure is applied at center of belt opposite idler.
Specification
|
Belt Pressure Applied to Measure Deflection
-Force
|
89 N (20 lb force)
|
|
Belt Deflection
-Distance
|
22 mm (7/8 in.)
|
2.
Tighten idler and install shield.
A-Idler
B-Belt
|
|
|
|
OUO6078,0005321 -19-09JUN06-1/2
|
|
3.
When complete belt idler adjustment is used, with belt on top of idler, loosen idler (A) and place belt (B) below idler.
A-Idler
B-Belt
|
|
|
|
OUO6078,0005321 -19-09JUN06-2/2
|
|
