Adjusting Slip Clutch

IMPORTANT: Adjust all springs to the same length.

The slip clutch is designed to slip under normal operation and furnish protection to the drive train. Overtightening will lessen this protection.

1. As a starting point for adjusting slip clutch, check spring dimension (A). Tighten or loosen spring adjusting nuts (B) to specifications.

2. Place a wooden block (C) between frame and plungerhead.


A-Spring Dimension
B-Adjusting Nuts
C-Wood Block

E22713
E18093

OUO6085,0000673 -19-17NOV06-1/2

IMPORTANT: Check slip clutch to be sure linings are not bonded to metal plates.

NOTE: When checking torque on baler with 3-joint powerline, it may be easier to use a socket wrench on hex powershaft. To check, remove PTO hookup and place socket wrench on front of hex powershaft and position lever on socket wrench.

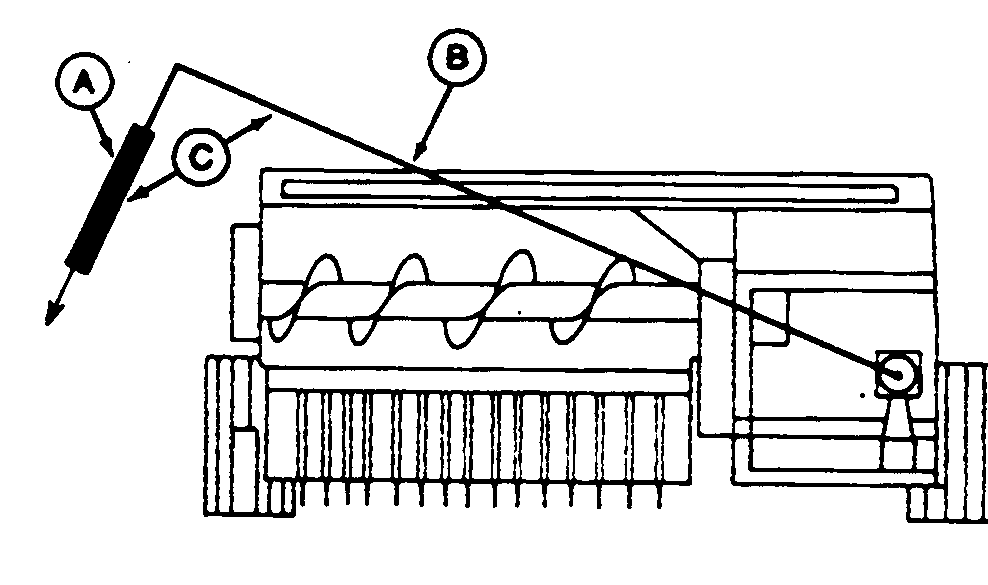

3. Check clutch slippage using a spring gauge (A) and 3.5 m (10 ft) lever (B) attached to powershaft. Exert force at 90 degree angle (C).

4. For proper force on lever for clutch slippage, see chart.

Force Required for Clutch Slippage
Balers Force Torque
348 with Category 4 hookup 245±22 N
(55±5 lb force)		 750±70 N·m
(550±50 lb-ft)
348 and with Category 5 hookup 270±22 N
(60±5 lb force)		 820±70 N·m
(600±50 lb-ft)



5. Tighten or loosen clutch spring cap screw until clutch slips in its proper range.

6. Remove wooden block.

E18336


A-Spring Gauge
B-Lever
C-90° Angle

OUO6085,0000673 -19-17NOV06-2/2
