Checking Transport Light Function
NOTE:
The flash rate of the transport lights is the flash rate of the tractor.
Connect transport lights to tractor outlet and check the transport light function with left and right turn signal and four-way flasher. The functions are as follows;
-
Tractor Lights In Field Position - (A)-Solid, (C)-Solid
-
Tractor Lights In Road Position - (A)-Solid, (C)-Solid, (B) and (D)-Flashing in unison
-
Right Turn - (A)-Solid / Bright, (B)-Flashing, (C)-Solid / Bright, (D)- Solid
-
Left Turn - (A)-Solid / Bright, (B)-Solid, (C)-Solid / Bright, (D)-Flashing
-
Four-Way - (B) and (D)-Flashing in unison.

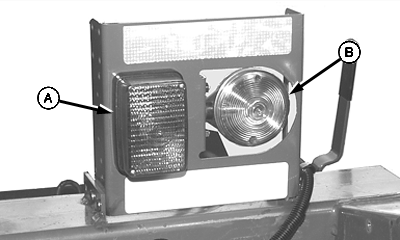

A-Brake Light (Right-Hand Side)
B-Amber Light (Right-Hand Side)

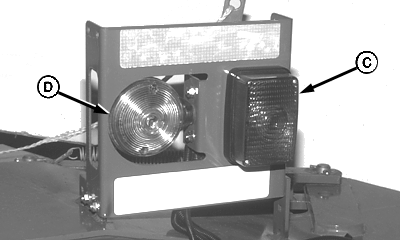

C-Brake Light (Left-Hand Side)
D-Amber Light (Left-Hand SIde)
|
Right-Hand Side
Left-Hand Side
|
