The mower-conditioner is equipped with transport lights located on the right and left-hand side of the carrier frame.

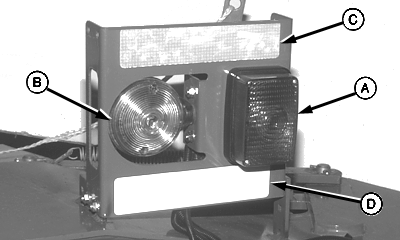

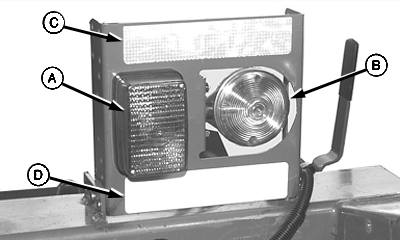

The transport lights consist of red tail lights (A), amber warning lights (B), a red reflective label (C), a flourescent orange label (D) and a yellow reflective label on the opposite side at the top.

The mounting bracket for the lights has a slot on the outward edge, allowing the amber warning light to be seen from the side of the mower-conditioner.

See ' CHECKING TRANSPORT LIGHT FUNCTION ' in the ' TRANSPORTING ' section of this manual.

AG,EX01223,178 -19-11SEP98-1/1
