Servicing Transport Lights

The turn signal and hazard light flash rate is the flash rate of the tractor.

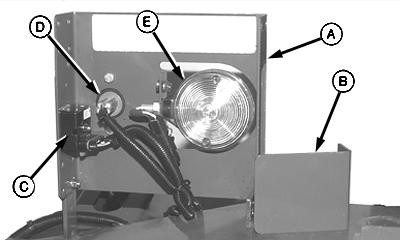

The controller causes the transport lights to function as required. The controller (C) is located on the left-hand transport light bracket, under the cover (B).

To replace the red tail light bulb (D) or controller (C) remove cover (B) from mounting bracket (A).

The amber lens (E) is installed by a press fit and can be removed by prying around the edges.

Red tail light bulb (D) part number - H133384

Amber warning light bulb (E) part number - AD2062R

A-Mounting bracket
B-Cover
C-Controller
D-Red Tail Light
E-Amber Hazard Light

AG,EX01223,179 -19-11SEP98-1/2

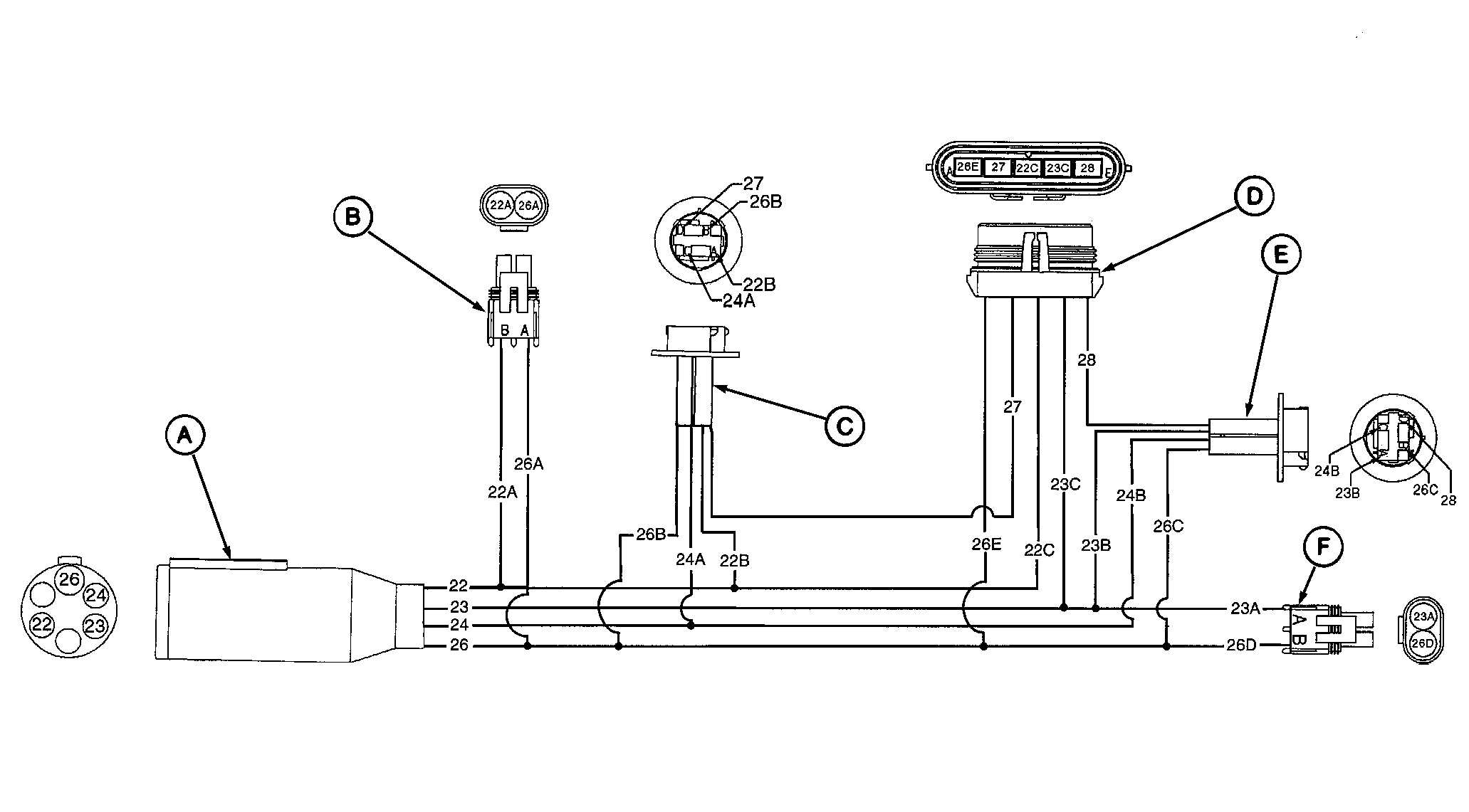

A-Tractor Connector
B-Warning Light Connector-LH
C-Tail Light Connector-LH
D-Controller Connector
E-Tail Light Connector-RH
F-Warning Light Connector-RH

22-Yellow-LH Light
22A-Yellow-LH Warning Light
22B-Yellow-LH Tail Light
22C-Yellow-Controller
23-Green-RH Light

23A-Green-RH Warning Light
23B-Green-RH Tail Light
23C-Green-Controller
24-Brown-Tail Lights
24A-Brown-LH Tail Light

24B-Brown-RH Tail Light
26A-26E-Black-Ground
27-Purple-LH Special Function
28-Orange-RH Special Function

The mower-conditioner harness is connected to the tractor.

The mower-conditioner right and left-hand lights respond to the controls in the tractor.

The system is simple and should not represent any difficulties in diagnosing a system malfunction.

The harness uses WEATHER PACK ™ connectors to the transport lights and controller.

WEATHER PACK is a trademark of Packard Electric

AG,EX01223,179 -19-11SEP98-2/2
