Replacing Bolt-On Knife Sections

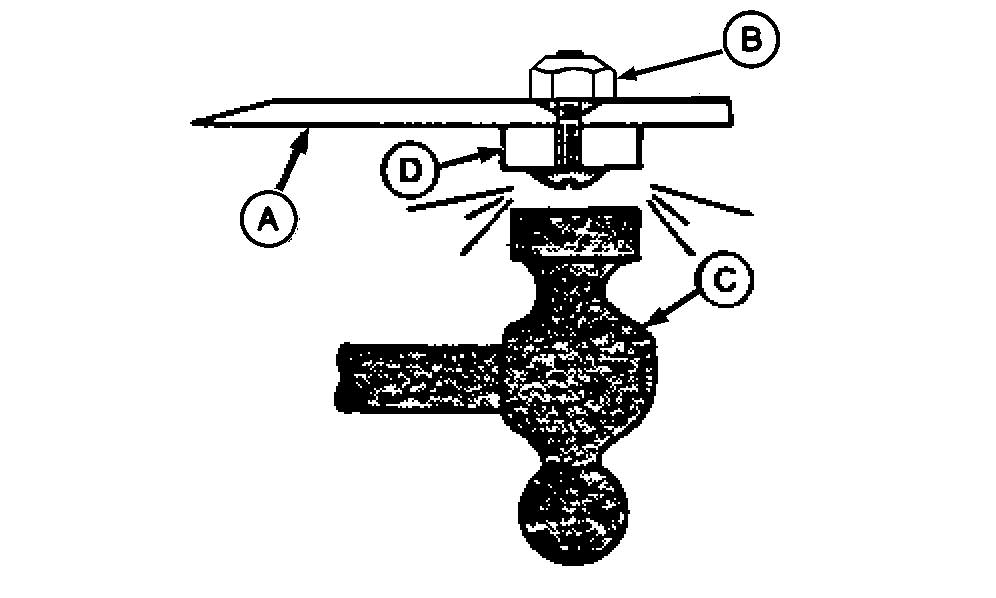

1. Install each new section (A) with two rib neck bolts and lock nuts (B). Install flat side of nut against knife section.

2. Drive bolts in from underneath with a hammer (C). Each bolt must be driven tight against knife back (D).

3. Tighten nuts to 8 lb-ft (11 Nm).
