Adjusting Windrow Width

Windrow width can be 864 to 2438 mm (34 to 96 in.) depending on crop conditions and swath flap position.

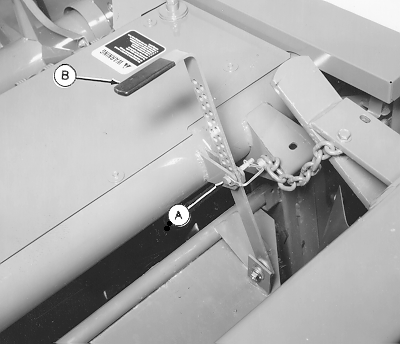

Remove pin (A). Raise or lower lever (B) to adjust swathboard for desired position. Install pin (A).

Raise lever (B) to make a narrow windrow.

Lower lever (B) to make a wide windrow.
