Adjusting Reel Speed

Adjust reel speed to meet varying crop conditions and ground speed by adjusting reel drive pulley.

Add shims between sheave halves to decrease reel speed. Remove shims to increase reel speed.

To adjust:

1. Open drive shield.

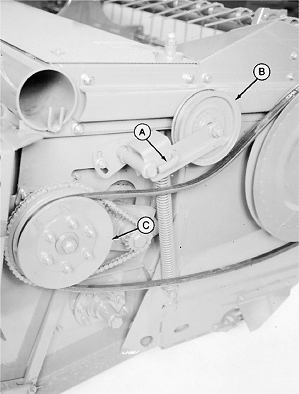

2. Release tension on belt by pulling pin (A) and lifting idler (B). Remove belt.

3. Remove six flange nuts from drive pulley (C).

4. Remove adjustable pulley half.

IMPORTANT: Do not add more than four shims or damage to belt may occur.

NOTE: In some crop conditions, it may be necessary to install an optional 16-tooth sprocket to increase reel speed. If optional sprocket is installed, refer to REEL SPEED CHART, 16-Tooth Sprocket (Optional) for correct setting.

5. Add shims between sheave halves to decrease reel speed. Remove shims to increase reel speed.

REEL SPEED CHART
13 Tooth Sprocket
Ground Speed
mph		 Reel Speed
rpm		 Number of Shims
Between Sheaves
3.0-3.5 47 4
3.5-4.0 50 3
4.0-4.5 53 2
4.5-5.0 55 1 a
5.0-5.5 58
aInitial factory setting.


E37165

EX,820J,N -19-01OCT93-1/3

REEL SPEED CHART
16 Tooth Sprocket (Optional)
Ground Speed
mph		 Reel Speed
rpm		 Number of Shims
Between Sheaves
5.0-5.5 60 4
5.5-6.0 63 3
6.0-6.5 66 2
6.5-7.0 69 1
7.0-7.5 72



EX,820J,N -19-01OCT93-2/3

6. Install pulley half (A) and fasten with six flange nuts. Tighten to 102 Nm (75 lb-ft).

7. Install belt. Tension belt by pulling pin (B) and lowering idler.

8. Adjust reel drive belt if necessary. (See Adjusting Reel Drive Belt in Service section.)

9. Close shield.

E37166

EX,820J,N -19-01OCT93-3/3
