Adjusting Reel Cam

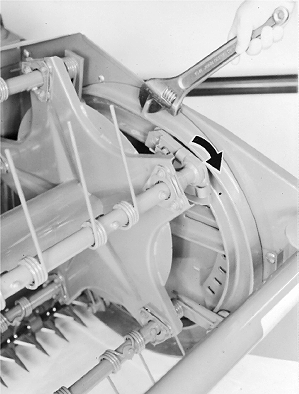

1. On left-hand side of machine, remove cap screw (A), washer, and nut.

2. Rotate cam to one of four positions. Rotate forward (direction of arrow) for a later material release (light crop), or rearward for an early material release (heavy crop).

3. Install cap screw (A), washer, and nut.
